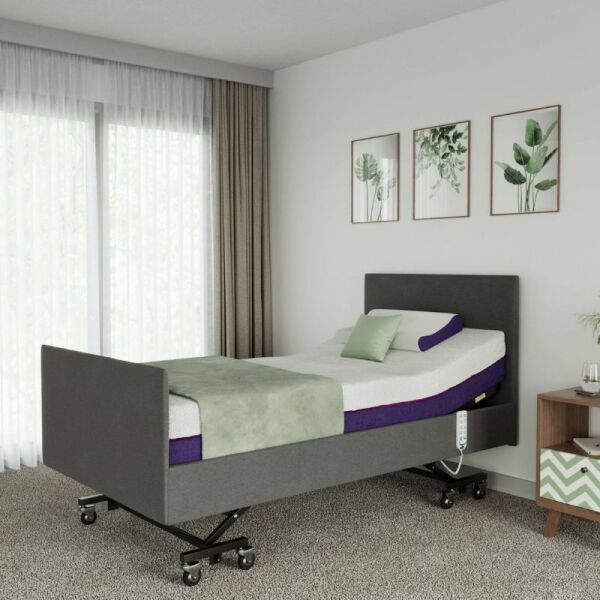

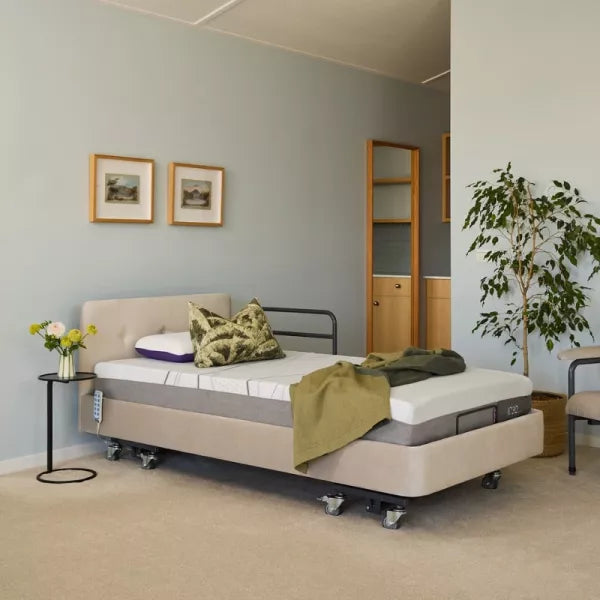

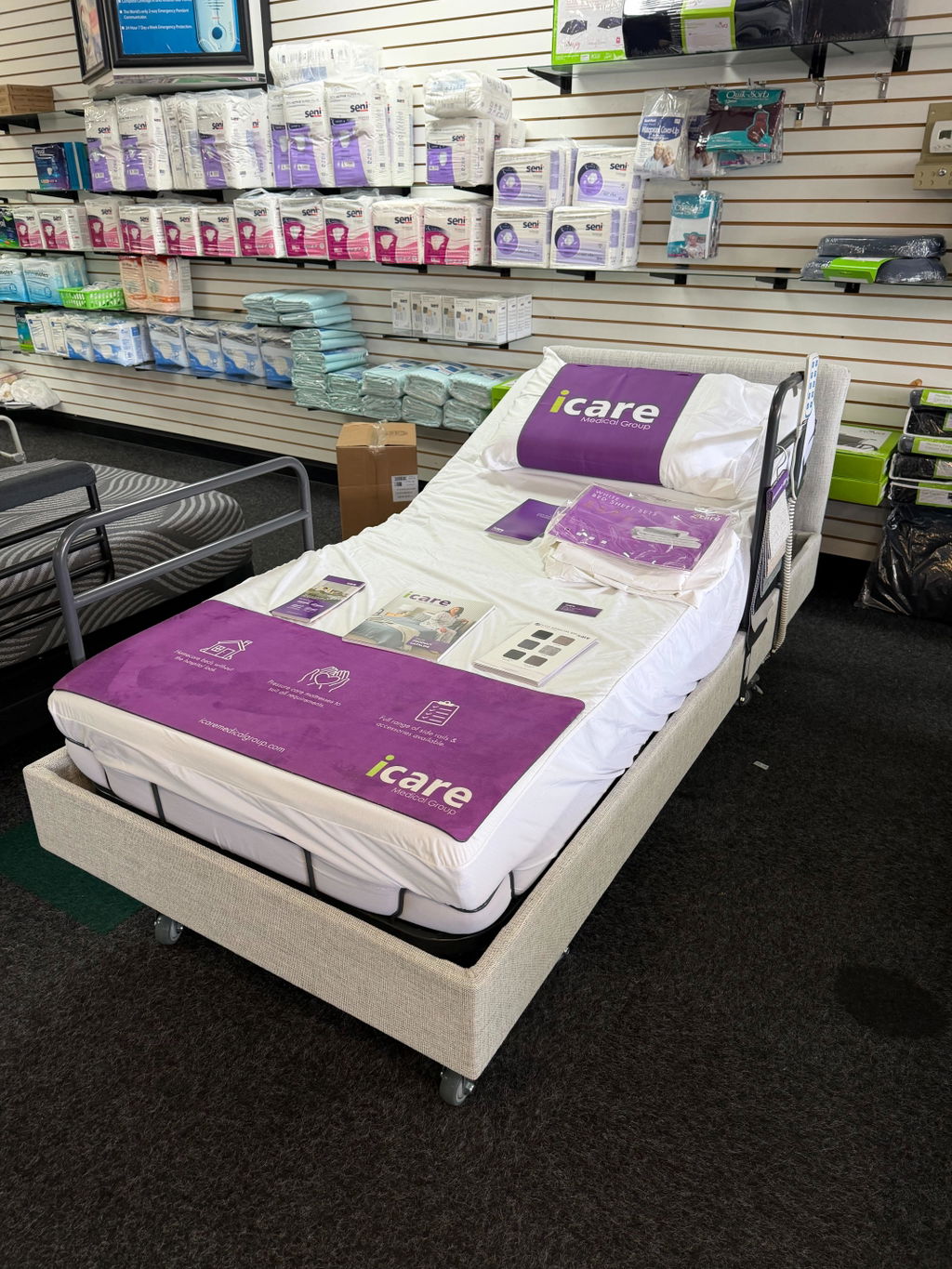

The Icare IC333™ Homecare Bed combines advanced electric positioning with a comfortable, residential-style design that feels at home in a bedroom—not a hospital room.
Its four-function electric system allows users and caregivers to independently adjust the head section, knee section, bed height, and Trendelenburg or Reverse Trendelenburg position. The mattress platform can be lowered to just 9 inches or raised to 26 inches, supporting easier transfers, safer access, and more comfortable caregiving.
A backlit, wipeable hand control makes adjustments easy during the day or at night. The strong metal-mesh mattress platform encourages airflow, while heavy-duty swivel castors, generous under-bed clearance, and an external rechargeable battery backup support everyday care and mobility around the room.

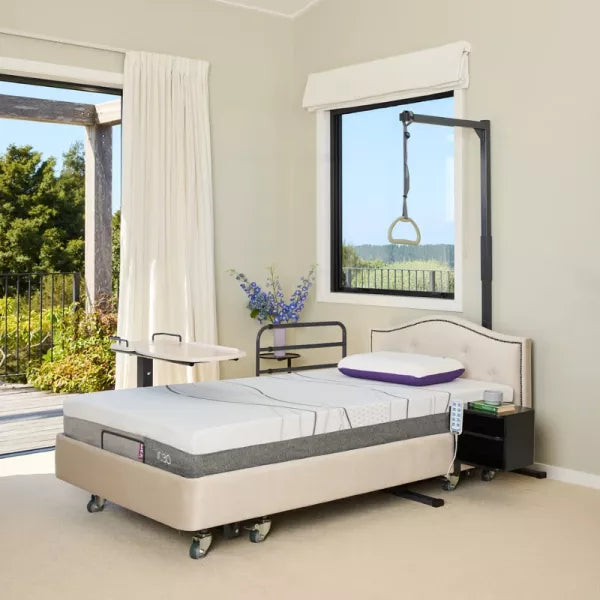

Available in Twin XL, Full XL, Queen, and Dual King configurations, the IC333 can be customized with a selection of hard-wearing fabric or antibacterial vinyl upholstery. Compatible accessories include side rails, assist rails, headboards, footboards, over-bed tables, bedside shelves, and other homecare accessories.
The IC333 is suited to long-term homecare environments where comfort, positioning flexibility, user independence, and caregiver access are important.
3. Key Features
- Four-function fully electric homecare bed

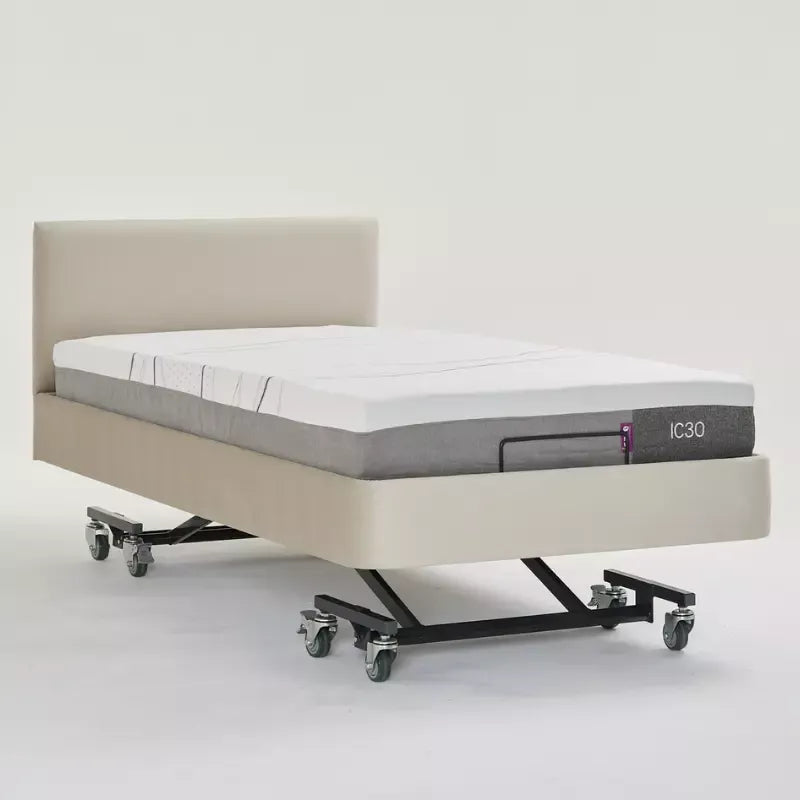

- Ultra-low 9-inch minimum platform height

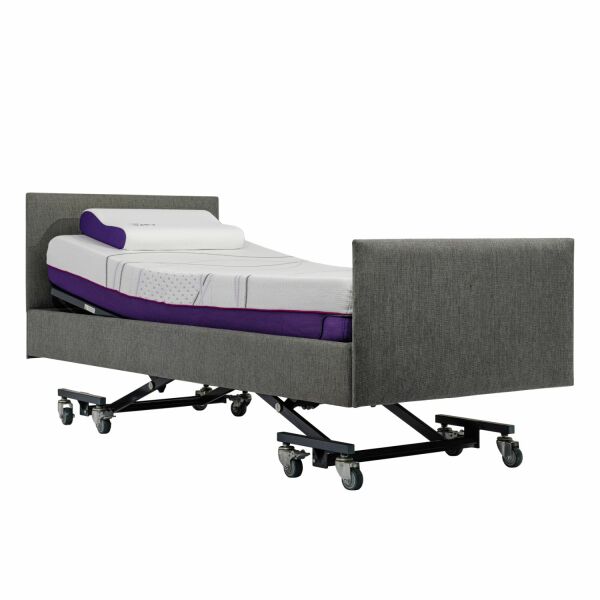

- Maximum platform height of 26 inches
- Electric head and knee positioning
- Trendelenburg and Reverse Trendelenburg positioning
- Backlit, wipeable wired hand control
- External rechargeable battery backup
- Strong, breathable metal-mesh mattress platform
- Heavy-duty swivel castors with locking capability
- Open under-bed design for caregiver and equipment access
- End and corner mattress retainer bars

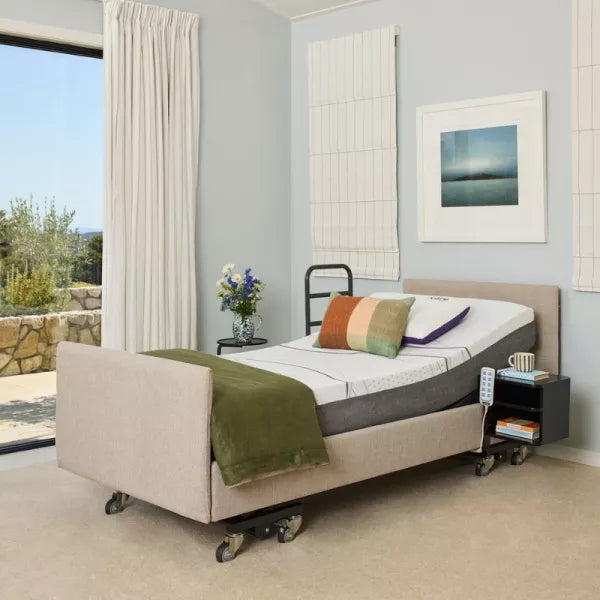

- Optional headboard and footboard configurations
- Multiple fabric and antibacterial vinyl upholstery choices
- Compatible with a wide selection of side rails and care accessories
- 10-year limited steel-frame warranty
Specifications
| Specification | Details |
|---|---|
| Brand | Icare Medical Group |
| Model | IC333 |
| Product Type | Four-function electric ultra-low homecare bed |
| Available Sizes | Twin XL, Full XL, Queen and Dual King |
| Minimum Platform Height | 9" from floor to top of mattress platform |
| Maximum Platform Height | 26" from floor to top of mattress platform |
| Head Lift Angle | Up to 62° |
| Knee Break Angle | Up to 42° |
| Twin XL Code | IC333TXL |
| Twin XL Mattress Surface | 80" × 35" |
| Twin XL Base Size | 85" × 38" |
| Twin XL Safe Working Load | 440 lb |
| Full XL Code | IC333FXL |
| Full XL Mattress Surface | 80" × 53" |
| Full XL Base Size | 85" × 55" |
| Full XL Safe Working Load | 660 lb |
| Queen Code | IC333Q |
| Queen Mattress Surface | 80" × 60" |
| Queen Base Size | 85" × 62" |
| Queen Safe Working Load | 660 lb |

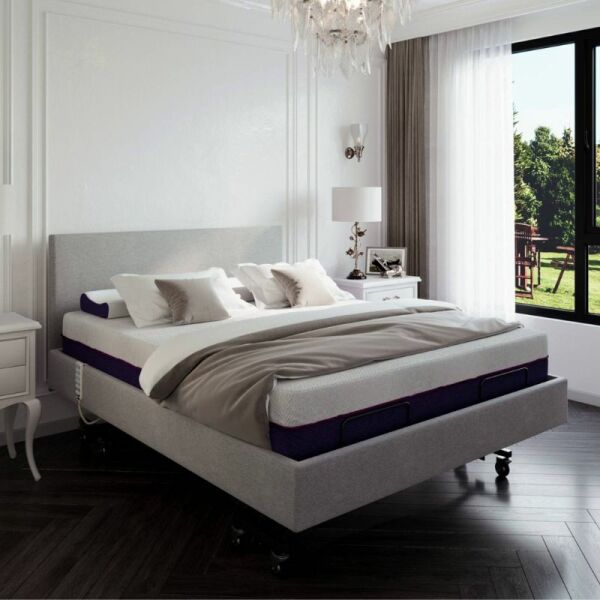

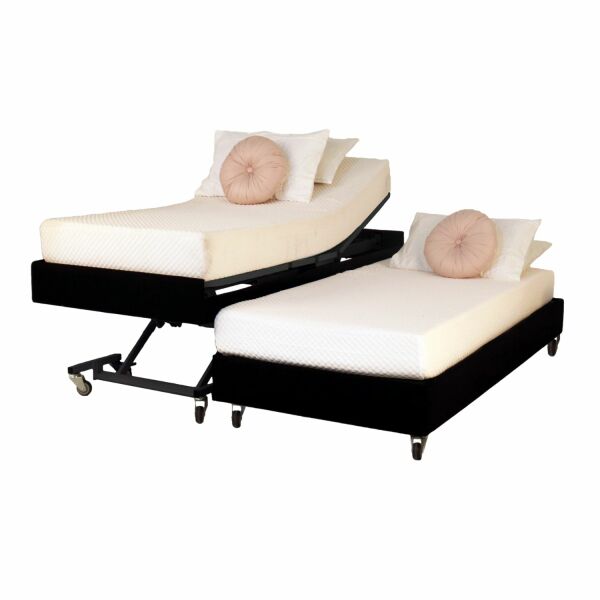

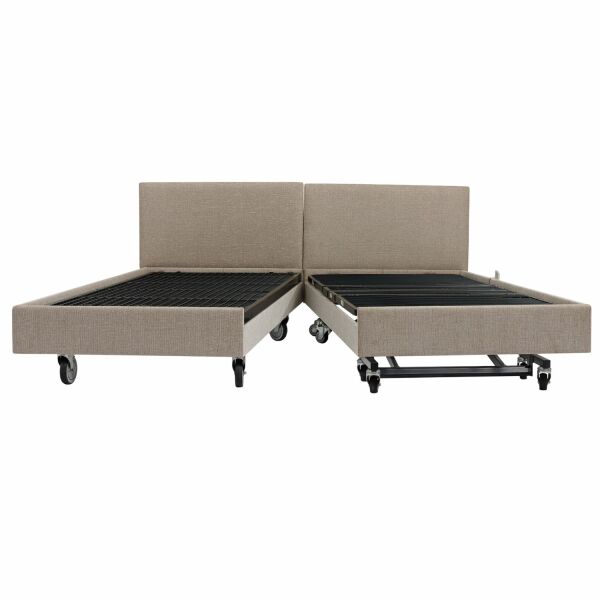

| Dual King Configuration | Two IC333TXL bed bases |
| Dual King Mattress Surface | Two 80" × 35" surfaces |
| Dual King Base Size | 85" × 76" when positioned together |
| Head Actuator | 1 × 6,000 N, 24 W |
| Knee Actuator | 1 × 6,000 N, 24 W |
| Height Actuators—Twin XL | 2 × 6,000 N, 24 W |
| Height Actuators—Full XL and Queen | 2 × 8,000 N, 24 W |
| Hand Control | Backlit, wipeable, easy-press buttons, wired stretch cord and hanging hook |
| Mattress Platform | Metal-mesh platform designed to encourage airflow |
| Upholstery—Fabric | Silver, Stone, Smoke and Onyx |
| Upholstery—Vinyl | Dove and Ebony |
| Battery Backup | External rechargeable battery backup |
| Frame Warranty | 10-year limited warranty |
| Actuators | 2-year limited warranty |
| Control Box | 2-year limited warranty |
| Castor Wheels | 2-year limited warranty |
| Hand Control | 2-year limited warranty |
| Upholstered Surround and Fabric | 2-year limited warranty |
Key Functions
Head Lift
The electrically powered head section raises to an angle of up to 62 degrees, supporting comfortable sitting, reading, eating, communication, and repositioning.
Knee Break
The knee section raises to an angle of up to 42 degrees, helping users find a more comfortable resting position and reducing the tendency to slide down the bed when the head section is elevated.
Hi-Low Height Adjustment
The mattress platform adjusts between 9 and 26 inches. A lower position can support easier access and reduce fall distance, while the raised position gives caregivers more comfortable access during daily care.
Trendelenburg Position
The complete mattress platform tilts so that the head is lower than the feet. This function should be used only when appropriate for the user’s care needs and following professional guidance.
Reverse Trendelenburg Position
The mattress platform tilts so that the head is higher than the feet while keeping the sleeping surface relatively flat. It can also support repositioning and caregiver-assisted care.
Independent Electric Control
The backlit hand control gives the user or caregiver direct access to the bed’s positioning functions, including during low-light conditions.
